01 / COMPACT SUB-STATIONSIEMENS 8FB20 PARTNER

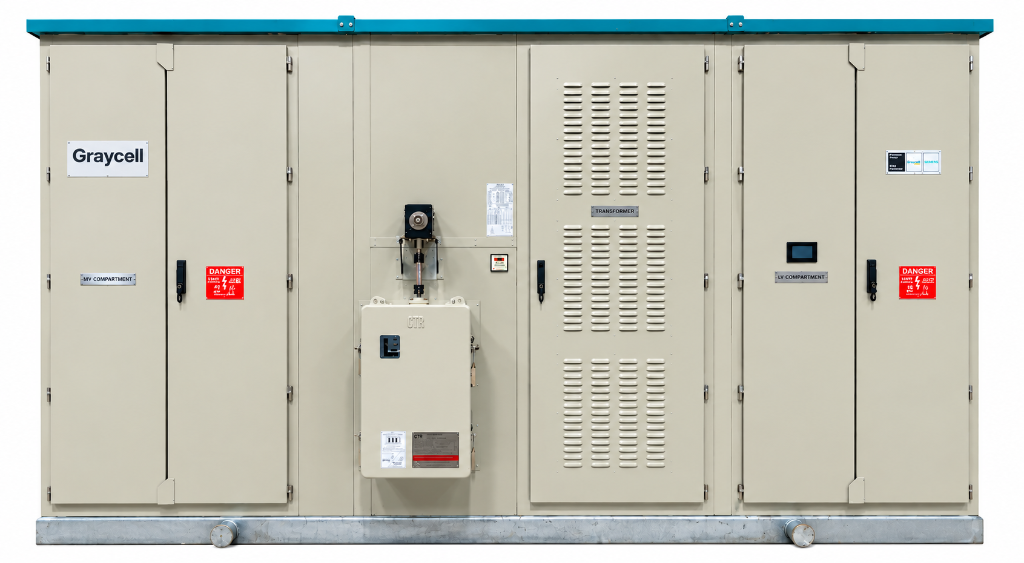

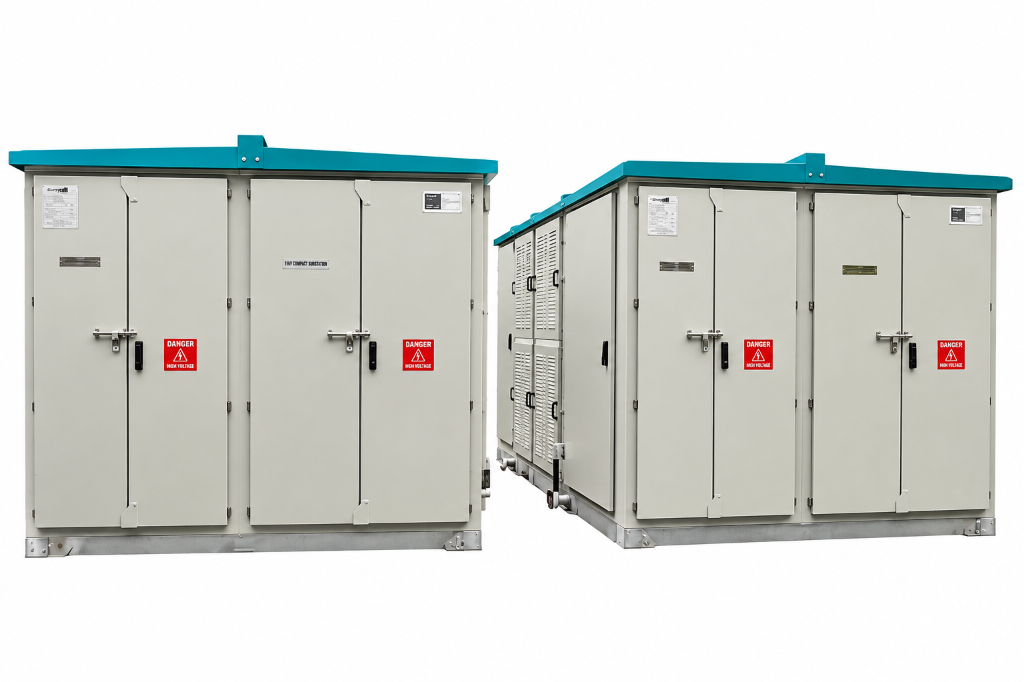

CSS with Oil / Dry Type Transformer up to 33kV

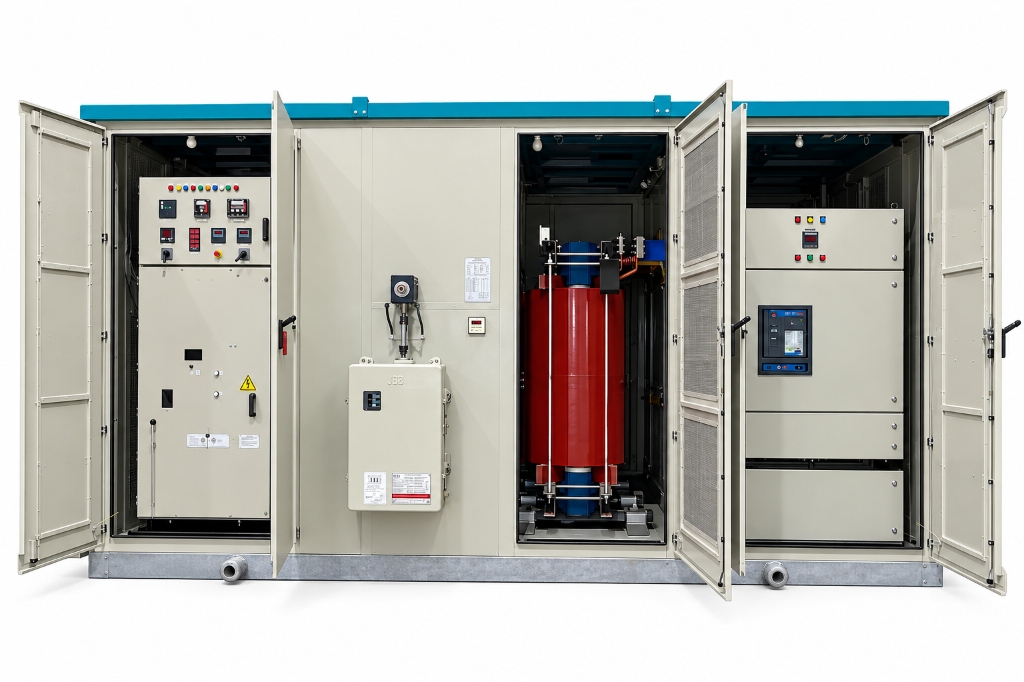

Oil or cast resin transformer integrations
Key Features
Fully type tested to IEC62271-202
Internal arc test design for 21KA 0.1Sec, Short time withstand 21KA 3Sec.
Fully Type tested & customized options in 6.6kV/11kV/22kV/33kV upto 2500 KVA with secondary voltage options from 415V upto 800Volts.
Enclosure Degree Of Protection - IP54 for MV-LV Section, IP23 for Transformer
Enclosure Class-K10 . Natural & AF Ventilation System
Designed, Built & Tested CSS to suit every project be it Indoor or Outdoor type
Rust, corrosion & weatherproof design suitable for outdoor application.
Extremely user-friendly design for operation & routine maintenance
02 / COMPACT SUB-STATIONSIEMENS 8FB20 PARTNER
CSS with Transformer having OLTC up to 33kV

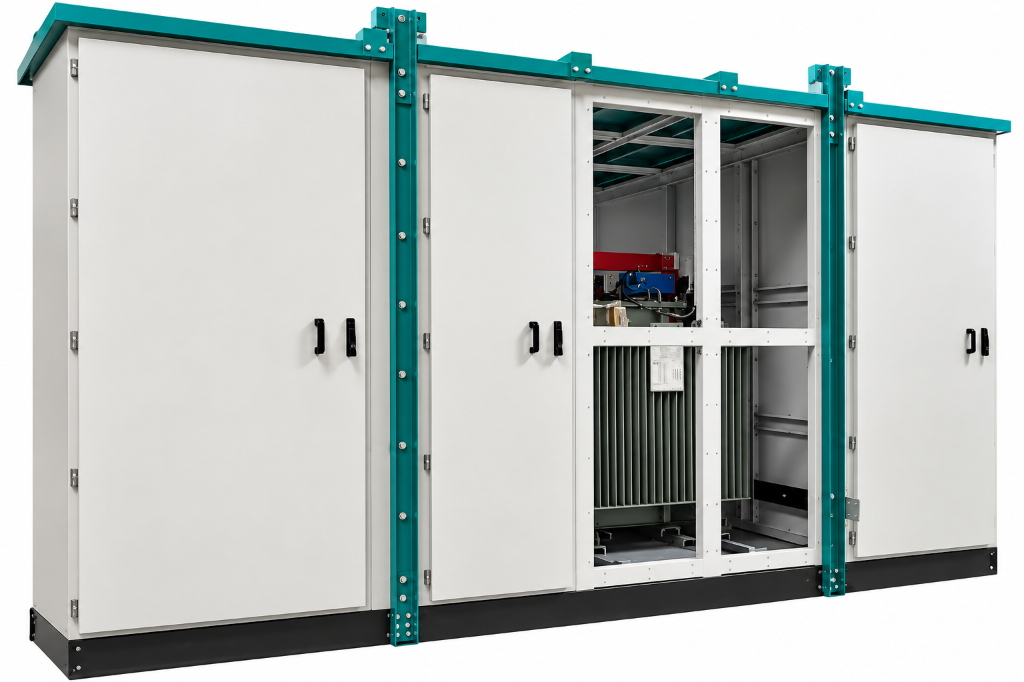

On-Load Tap Changer integrations
Key Features
Customized design of CSS as per requirement
Separate door for OLTC operation
Compact type transformer with OLTC to accommodate in CSS
HT/LT placement on one side of CSS to save space
Inbuilt RTCC panel for OLTC
Special lifting arrangement for heavy, large CSS
03 / COMPACT SUB-STATIONSIEMENS 8FB20 PARTNER

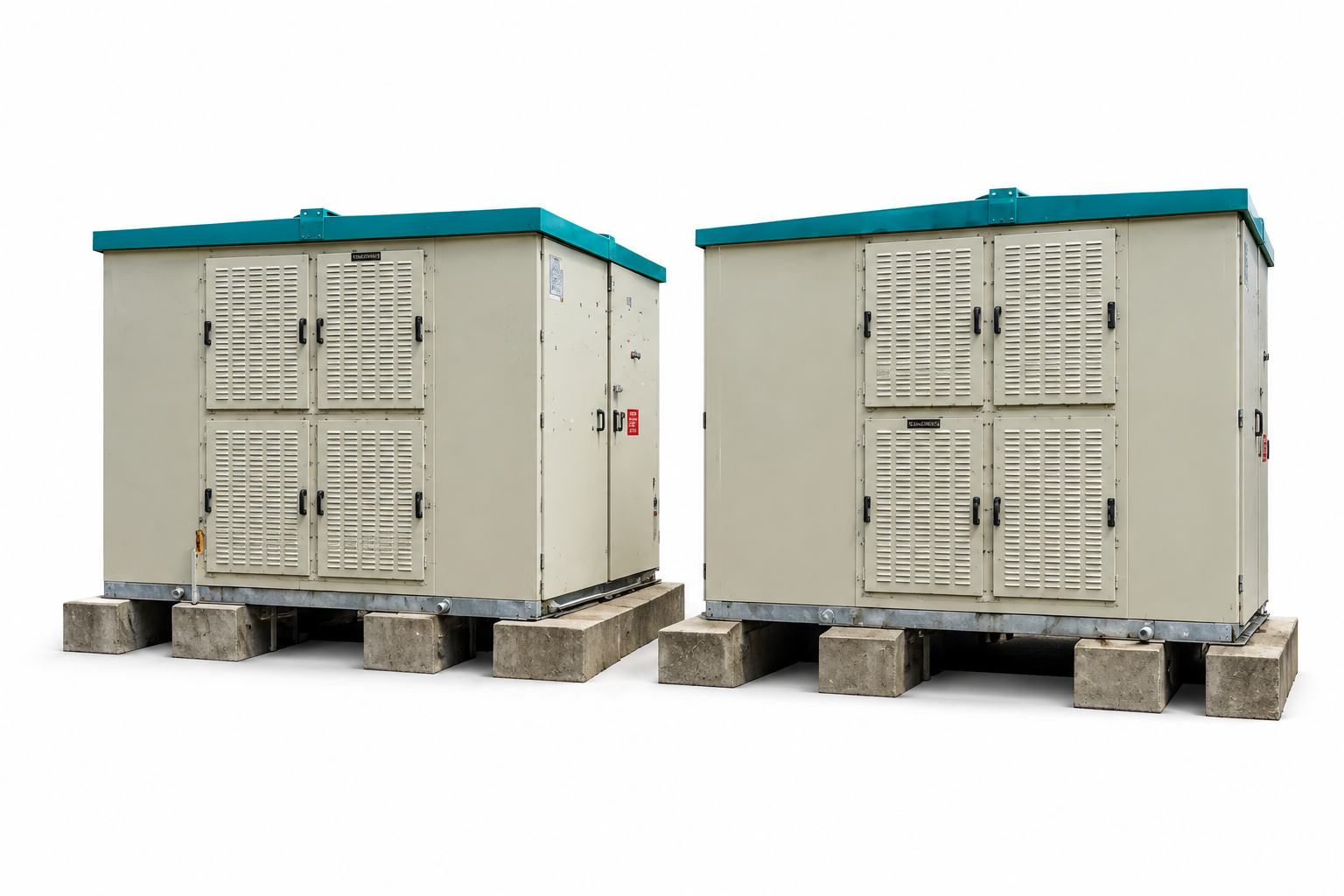

MSEDCL Approved CSS
Utility compliant distribution packages
STUDIO SPECIFICATION PHOTOGRAPH
Key Features
Specially designed CSS as per MSEDCL requirements.
Fully type-tested design up to 1000kVA, 22/0.433kV CSS.
Approved by MSEDCL.
HT side MSEDCL approved SCADA RMU.
Transformer compartment suitable to accommodate any standard MSEDCL transformer.
Interchangeability of transformer at site location easily possible.
LT side MSEDCL approved feeder pillar is provided.
All CSS are fully tested by MSEDCL authority.
Suitable for all LT consumers.
04 / COMPACT SUB-STATIONSIEMENS 8FB20 PARTNER
PAD Mounted CSS

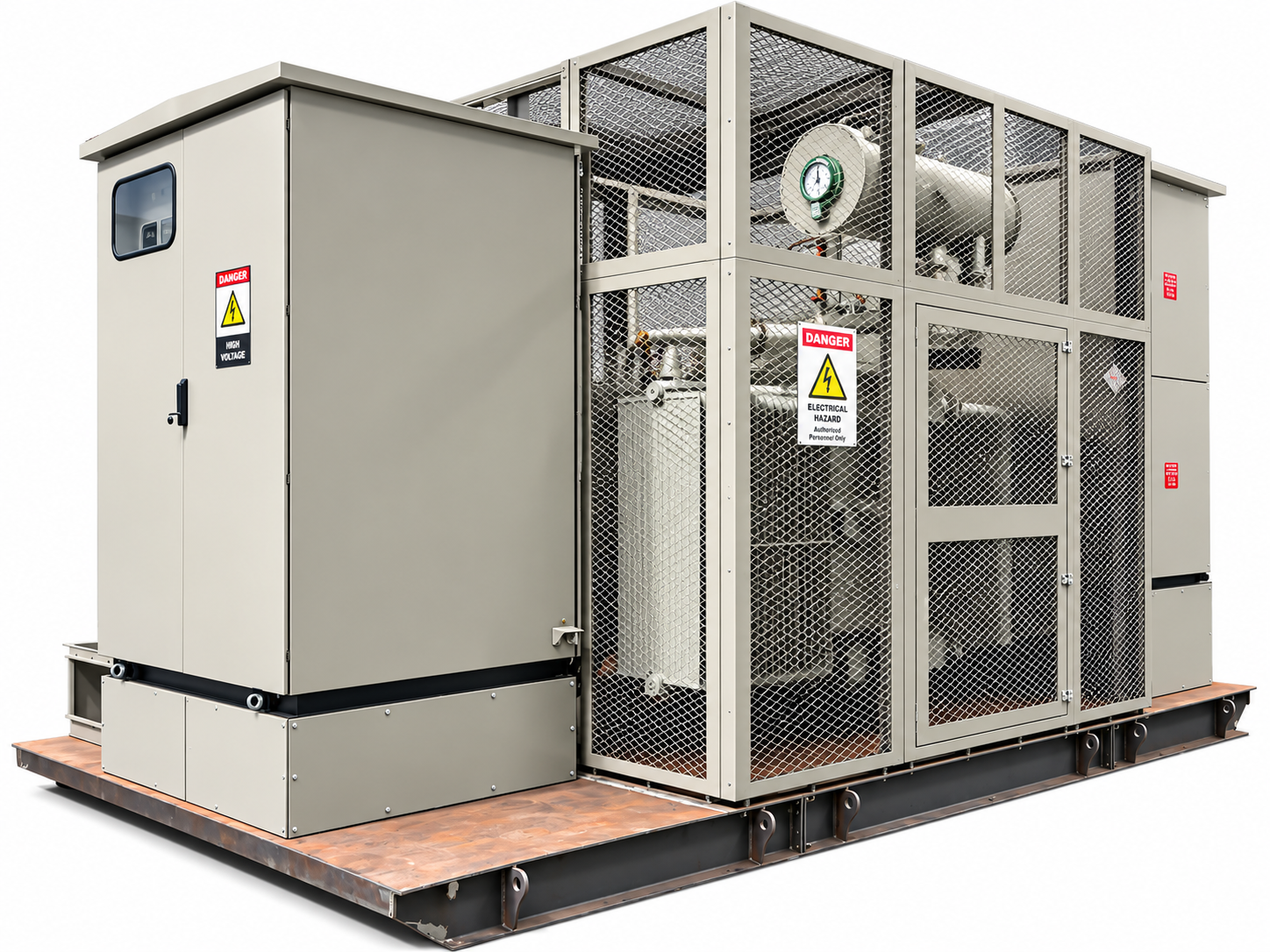

Compact skid / pad mounted solutions
STUDIO SPECIFICATION PHOTOGRAPH
Key Features
PAD skid-mounted CSS for non-standard site requirements in the entire range.
Compact in design.
HT Transformer and LT Panel are mounted on a common skid and connected with each other by cables/busbars.
Safety fencing is provided for the transformer.
High IP degree of protection.
Suitable for all types of indoor and outdoor installations.
Easy to operate and maintain.
05 / COMPACT SUB-STATIONSIEMENS 8FB20 PARTNER

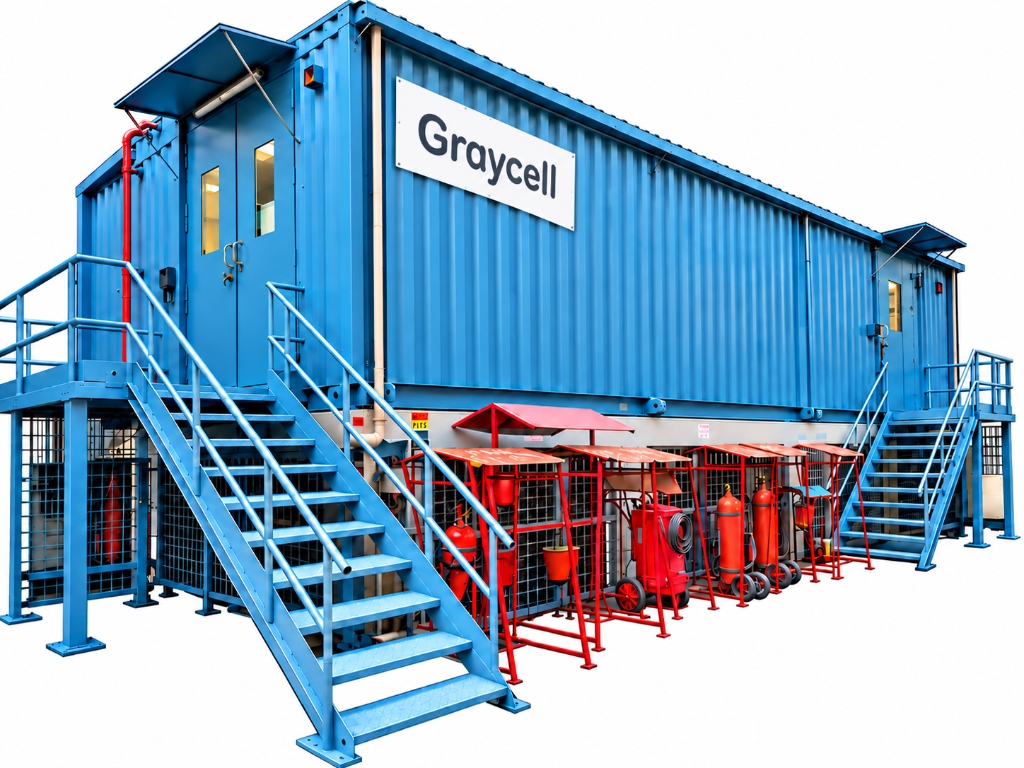

E-House (Walkable Containerised Substation)
Heavy-duty walkable container substations
STUDIO SPECIFICATION PHOTOGRAPH
Key Features
E-House is a modern concept in which all substation switchgear panels and aux panels are installed in one container, which is walkable and convenient to operate.
E-House is a plug-and-play solution which is pre-assembled at the factory and delivered to the site ready to use.
Reduces site work and installation time.
E-House is completely enclosed, hence suitable for the oil and gas, steel, and cement industries where the outside environment is hazardous.
E-House is equipped with a fire and gas suppression system.
E-House features fire-retardant walls to protect inside switchgear panels from external fires for up to 60/90/100 minutes.
